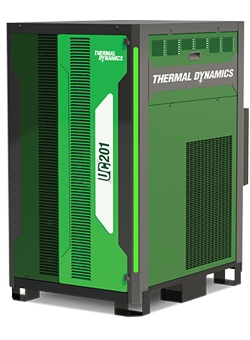

Victor Thermal Dynamics Ultra Cut XT plasma generator

This range of plasma generators is the most famous in metal industry, due to the cutting quality of the parts achieved, almost without slag, few clearance and holes diameter equivalent to the sheet thickness (turntable 12 mm = diameter 12 mm).

They are generators cutting with Oxygen, Nitrogen, Argon,… but that have a low gas consumption.

The Ultra- Cut® XT Plasma systems offer the best of modern high precision plasma cutting for mild steel, stainless steel and aluminium.

Maintenance is very low and the consumables lifetime is longer in comparison to other generators ranges (semi-HD type and standard).

Possibility to cut up to 80mm thickness in steel,… and up to 160mm for stainless steel.



Comments:

Cutting process with water spraying allowing to obtain a better cutting quality on stainless steel and aluminium.

Generator advantages:

  • Cutting quality
  • Automatic gas console
  • Use of oxygen, nitrogen… gas
  • Hole diameter = sheet thickness
  • Marking
  • Consumables long lifetime

Drawbacks:

  • Purchase price
Mild steelStainless steelAluminiumDimensions / weight
Ultra-cut 100XT
ultracut 100 xt
Drilling production:
Maximum drilling:
Starting from the edge:
15 mm
15 mm
20 mm
15 mm
15 mm
20 mm
15 mm
15 mm
20 mm
1219x698x1031mm
186kg
Ultra-cut 200XT
ultracut 200 xt
Drilling production:
Maximum drilling:
Starting from the edge:
25 mm
40 mm
65 mm
25 mm
25 mm
50 mm
20 mm
25 mm
50 mm
1219x698x1031mm
205kg
Ultra-cut 300XT
ultracut 300 xt
Drilling production:
Maximum drilling:
Starting from the edge:
40 mm
45 mm
75 mm
25 mm
30 mm
50 mm
25 mm
30 mm
50 mm
1219x698x1031mm
244kg
Ultra-cut 400XT
ultracut 400 xt
Drilling production:
Maximum drilling:
Starting from the edge:
50 mm
50 mm
90 mm
50 mm
50 mm
100 mm
50 mm
60 mm
90 mm
1219x698x1031mm
252kg
