Compatible Digital Control Intensifier SX

Spare parts SX intensifier

Diagram and legend

piece detachees intensifieur SX - Compatible Digital Control Intensifier SX

RéférenceDescription
1RSSOPRO.02.200Ring nut shirtchemise frette 236x300 - Compatible Digital Control Intensifier SX
2RSSOPRO.03351Valve block holdebloc clapet 300x265 - Compatible Digital Control Intensifier SX
3RSSOPRO.02.208Cylinder sleevedouille cylindre 300x191 - Compatible Digital Control Intensifier SX
4RSLD5-02205Dynamic seal interior ringjoint dyn bague interne 300x291 - Compatible Digital Control Intensifier SX
5RSLD6-02206Dynamic seal exterior ringjoint dyn bague externe 293x300 - Compatible Digital Control Intensifier SX
6RSSOPRO.02.203Valve block nutecrou bloc clapet 287x300 - Compatible Digital Control Intensifier SX
7RSLD8-02204Backup ringbague anti extrusion 300x300 - Compatible Digital Control Intensifier SX
8RSLD9-KI310Static sealjoint statique 300x276 - Compatible Digital Control Intensifier SX
9RSCI3199 04 19Male bracket A 4m5equerre male AE 4m5 300x190 - Compatible Digital Control Intensifier SX
10RSCI3979 06 10Male bracket AE 3/8”equerre male AE 3 8 pcs 300x192 - Compatible Digital Control Intensifier SX
11RSCI3979 08 10Male tamping bracket 1/8”equerre a piquage male 1 8 pcs 300x194 - Compatible Digital Control Intensifier SX

VHP release set

Scheme and legendDescription
decharge thp - Compatible Digital Control Intensifier SX1Release valve
2Pipe 1
3Pipe 2
4VHP nut 3/8”
5Release chamber

SX Intake Valve Block

Scheme et legendDescription
bloc clapet 300x197 - Compatible Digital Control Intensifier SX1Valve block holder
RSSOPRO.03.351
bloc clapet 300x265 - Compatible Digital Control Intensifier SX
2Low pressure valve holder
RSSOPRO.03.52
support clapet basse pression 300x276 - Compatible Digital Control Intensifier SX
3Low pressure valve
RSSOPRO.03.356
clapet basse pression 300x252 - Compatible Digital Control Intensifier SX
4Low pressure valve holder spring
RSLD4-PRO03357DIG
ressort clapet basse pression 170x300 - Compatible Digital Control Intensifier SX

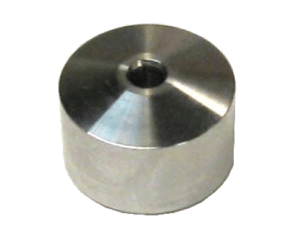

5Seat
RSSOPRO.03.353
siege 300x237 - Compatible Digital Control Intensifier SX
6HP valve body
RSSOPRO.03.354
corps de clapet hp 300x251 - Compatible Digital Control Intensifier SX
7SX actuator 6mm stainless steel ball
RSLD-BILLE440CDIG
bille inox 6mm verin sx 300x251 - Compatible Digital Control Intensifier SX
8Ball holder
RSSOPRO.03.304
support de bille 300x251 - Compatible Digital Control Intensifier SX
9Compression spring
RSLD9-C120014038
ressort de compression 300x251 - Compatible Digital Control Intensifier SX
10Low pressure ring
RSSOPRO.03.355
bague basse pression 300x251 - Compatible Digital Control Intensifier SX
11Male tamping Ø 12 1/4 BSP
RSCI36011213
piquage male o12 300x251 - Compatible Digital Control Intensifier SX
12O ring
RSLD12-OR50X3DIG
joint torique 300x251 - Compatible Digital Control Intensifier SX
