Digital Control-compatible S Intensifiers

Spare parts

schémas pièces détachées



Description
1Actuator
RSPSINT01
vérin
2Spacer
RSPSINT02
entretoise
3Flange
RSPSINT03
flasque
4Coupling ring
RSPSINT04
bague d'accouplement
5End of stroke holder
RSPSINT05
support fin de course
6Sensor
RSPSINT06
capteur
7Plunger
RSPSINT07
plongeur
8Front cylinder flange
RSPSINT08
flasque cylindre avant
9Coupling
RSPSINT09
chape
10Plunger socket
RSPSINT10
douille plongeur
11Backup ring
RSPSINT11
bague anti extrusion
12Interior ring HP seal
RSPSINT12
joint hp bague interieure

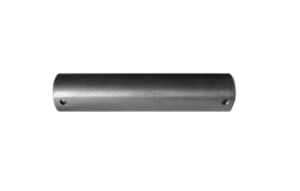

13Cylinder sleeve
RSPSINT13
douille cylindre
14Exterior ring HP seal
RSPSINT14
joint hp bague extérieure
15Back cylinder flange
RSPSINT15
flasque cylindre arrière
16Adaptor 1/8”
RSPSINT16
adaptateur 1 8
17Valve block
RSPSINT17
bloc clapet
18Cylinder
RSPSINT18
cylindre
19Low pressure fitting
RSPSINT19
raccord d'arrivée basse pression
20VHP outlet fitting
RSPSINT20
raccord sortie THP
21Lubrication oil drainage
RSPSINT21
raccord drainage huile de lubrification
22Oil inlet elbow fitting
RSPSINT22
raccord coude d'arrivée huile de lubrification
23Lubrication injector
RSPSINT23
injecteur de lubrification
24Seals kit for actuator
RSPSINT24
jeu de joints pour vérin

 Flap block

schema bloc clapet



Description
1Holder
RSPSBC01
support
2Cap
RSPSBC02
chapeau
3Double seat (olive)
RSPSBC03
double siege (olive)
4Double seat (olive)
RSPSBC03
Ceramic ball and holder
RSPSBC04
bille ceramique et support
5Spring
RSPSBC05
ressort
6Nitrile O ring 20 x 2
RSPSBC06
joint torique nitrile 20x2
7Screw
RSPSBC07
vis

ATTENUATOR – Spare Parts

Description
1Cylindre
RSATT01
X
2Entrée
RSATT02
entree
3Ecrou
RSATT03
ecrou
4Bague anti extrusion
RSSOPRO.05.507
bague anti extrusion
5Joint
RSCI1300553512
joint
6Circlips diamètre 35
RSCI35INOX
circlip diam35
7Bride
RSATT07
bride
8Tirant 1.25 l
RSATT08
x
9Support
RSATT09
x
10Cale
RSATT10
x
