Digital Control Compatible SX Intensifier

X intensifier cylinder

schema verin - Digital Control Compatible SX Intensifier

Description
1Piston
RSSOPRO.11.101
piston 300x228 - Digital Control Compatible SX Intensifier
2Plunger
RSSOPRO.01.102
plongeur 300x228 - Digital Control Compatible SX Intensifier

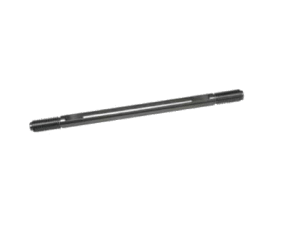

3Connecting rod
RSSOPRO.01.103
tige de liaison 300x228 - Digital Control Compatible SX Intensifier

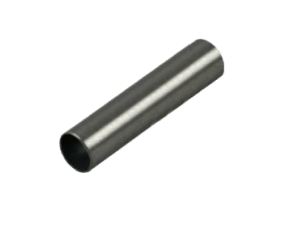

4Actuator chamber
RSSOPRO.11.106
chambre de verin 300x228 - Digital Control Compatible SX Intensifier
5Left actuator body
RSSOPRO.01.111
corps de verin gauche 300x228 - Digital Control Compatible SX Intensifier
6Right actuator body
RSSOPRO.01.107
corps de verin droit 300x228 - Digital Control Compatible SX Intensifier
7Bronze ring
RSSOPRO.01.105
bague bronze 300x228 - Digital Control Compatible SX Intensifier
8Actuator tie-rod
RSSOPRO.01.113
tirant verin 300x228 - Digital Control Compatible SX Intensifier
9Bronze ring thrust bearing
RSSOPRO.01.112
butee bague bronze 300x228 - Digital Control Compatible SX Intensifier
10Sensors holder
RSSOPRO.01.104
support capteurs 300x228 - Digital Control Compatible SX Intensifier

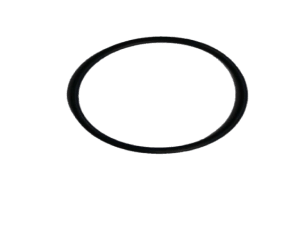

11Actuator body O ring
RSLD11-OR123.42x3
joint torique corps de verin 300x228 - Digital Control Compatible SX Intensifier
12Backup ring
RSLD12-PBK_Bague_AE
bague anti extrusion1 300x228 - Digital Control Compatible SX Intensifier
13Threaded pin with hexagonal socket
FHc M5-12
vis tete fraisee 6 pans creux 300x228 - Digital Control Compatible SX Intensifier
14Piston position sensor
RSRS198970
capteur de position piston 300x228 - Digital Control Compatible SX Intensifier
15Joint composite piston
RSLD16-DEPOD55
joint composite piston 300x228 - Digital Control Compatible SX Intensifier
16Joint piston/plongeur
RSLD17-RS28x38x9
joint piston plongeur 300x228 - Digital Control Compatible SX Intensifier
17Joint composite bague bronze
RSLD18-SEPO5517102
joint composite bague bronze 300x228 - Digital Control Compatible SX Intensifier
18Joint torique bague bronze
RSLD19-OR47.22x3.5
joint torique bague bronze 300x228 - Digital Control Compatible SX Intensifier
19Bague AE bague bronze
RSLD20-PBK47.22x3
joint torique bague bronze 300x228 - Digital Control Compatible SX Intensifier

bague AE bague bronze 300x228 - Digital Control Compatible SX Intensifier
20Bague de guidage
RSLD21-ORKOT130DIG
bague de guidage 300x228 - Digital Control Compatible SX Intensifier

Cylinder block “SX intensifier”

bloc verin - Digital Control Compatible SX Intensifier



Description
1Drilled block flange / actuator
RSPSXBV01
bloc fore 300x211 - Digital Control Compatible SX Intensifier
2Cap adaptor MBSPP 1/2
RSPSXBV02
Adapateur bouchon MBSPP 1 2 300x239 - Digital Control Compatible SX Intensifier
3Cap adaptor MBSPP 1/2
RSPSXBV02
Adapateur bouchon MBSPP 3 8 300x239 - Digital Control Compatible SX Intensifier
4Sealing ring
RSPSXBV04
bague etencheite 300x239 - Digital Control Compatible SX Intensifier
5Coil 220V DC
RSPSXBV05
bobine 220V DC 300x210 - Digital Control Compatible SX Intensifier
6Solenoid valve Cetop05
RSPSXBV06
electrodistributeur cetop05 300x210 - Digital Control Compatible SX Intensifier
7O ring 2499-353-3/4”
RSPSXBV08
joint torique 2499 353 3 4 300x210 - Digital Control Compatible SX Intensifier
8Pressure test port 20 3/8”
RSPSXBV09
prise de presion test 20 3 8 300x210 - Digital Control Compatible SX Intensifier
9CHc screw class 12-9 black
RSPSXBV10
vis CHc classe 12 9 noir 3 300x210 - Digital Control Compatible SX Intensifier
10CHc screw class 12-9 black
RSPSXBV11
vis CHc classe 12 9 noir 2 300x210 - Digital Control Compatible SX Intensifier
11CHc screw class 12-9 black
RSPSXBV12
vis CHc classe 12 9 noir 1 300x210 - Digital Control Compatible SX Intensifier
12O ring
RSPSXBV13
X

Pressure limiting block

Bloc limitation de pression - Digital Control Compatible SX Intensifier

Description

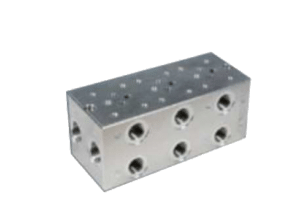

1Drilled block
RSPSXBLP01
bloc fore ch2000 dig31 300x222 - Digital Control Compatible SX Intensifier
2Headless stopper 1/8”
RSPSXBLP02
bouchon sans tete 1 8 300x222 - Digital Control Compatible SX Intensifier
3CHc screw 12-9 Black
RSPSXBLP03
vis CHc classe 12 9 noir 300x222 - Digital Control Compatible SX Intensifier
4Pressure limiter AGAM
RSPSXBLP04
limiteur de pression agam 300x222 - Digital Control Compatible SX Intensifier
5Double pressure limiter
RSPSXBLP05
limiteur de pression double 300x222 - Digital Control Compatible SX Intensifier
6Pressure test port 20 1/4”
RSPSXBLP06
prise de pression test 20 1 4 300x222 - Digital Control Compatible SX Intensifier
7Ring fitting 1/4”
RSPSXBLP07
raccord a bague 1 4 300x222 - Digital Control Compatible SX Intensifier
8Cap adaptor M BSPP 1/4
RSPSXBLP08
adaptateur bouchon M BSPP 1 4 300x222 - Digital Control Compatible SX Intensifier
9Cap adaptor M BSPP 3/8
RSPSXBLP09
adaptateur bouchon M BSPP 3 8 300x222 - Digital Control Compatible SX Intensifier
10Closure plate Cetop03
RSPSXBLP10
plaque de fermeture cetop03 300x222 - Digital Control Compatible SX Intensifier
11Modular block Comatrol
RSPSXBLP11
bloc modulaire comatrol 300x222 - Digital Control Compatible SX Intensifier
12Coil Comatrol 220DC
RSPSXBLP12
bobine comatrol 220C 300x222 - Digital Control Compatible SX Intensifier
13Cap
RSPSXBLP13
bouchon 300x222 - Digital Control Compatible SX Intensifier
14Electrovalve 2/2 no 1 sens
RSPSXBLP14
electroclapet 2 2 no 1 sens 300x222 - Digital Control Compatible SX Intensifier
15Pan head screw
RSPSXBLP15
vis a tete cylindrique 300x222 - Digital Control Compatible SX Intensifier
16Vis CHc Classe 12-9 Noir
RSPSXBLP16
vis CHc classe 12 9 noir 2 300x210 - Digital Control Compatible SX Intensifier
17CHc screw Class 12-9 Black
RSPSXBLP17
vis CHc classe 12 9 noir 3 300x210 - Digital Control Compatible SX Intensifier
18Ring BS 3/8”
RSPSXBLP18
bague BS 3 8 300x222 - Digital Control Compatible SX Intensifier
19Adaptator G1/4M G3/8M
RSPSXBLP19
adaptateur G1 4M G3 8M BSPP 300x222 - Digital Control Compatible SX Intensifier
20Electrodistributor Cetop03
RSPSXBLP20
electroditributeur cetop03 300x222 - Digital Control Compatible SX Intensifier
21Coil DHI
RSPSXBLP21
bobine DHI 300x222 - Digital Control Compatible SX Intensifier
22Electrodistributor Cetop03
RSPSXBLP22
electroditributeur cetop03 2 300x222 - Digital Control Compatible SX Intensifier
23Coil DHI
RSPSXBLP23
bobine DHI 300x222 - Digital Control Compatible SX Intensifier

bobine DHI1 300x222 - Digital Control Compatible SX Intensifier
24Adaptator BSP 3/4M JIC 12M
RSPSXBLP24
adaptateur BSP 3 4 M JIC 12M 300x222 - Digital Control Compatible SX Intensifier

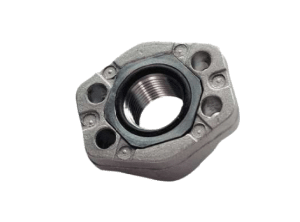

25BFX-3000-T-BSP-1”-U
RSPSXBLP25
bfx 3000 t bsp 1 U 300x222 - Digital Control Compatible SX Intensifier

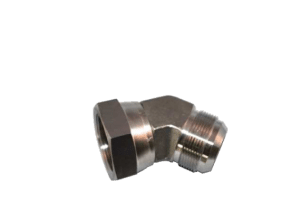

26Adaptator 45°M BSP/M JIC
RSPSXBLP26
adaptateur 45 M BSP M JIC 300x222 - Digital Control Compatible SX Intensifier
27CHc screw class 12-9 Black
RSPSXBLP27
vis CHc classe 12 9 noir 2 300x210 - Digital Control Compatible SX Intensifier
28CHc screw class 12-9 Black
RSPSXBLP27
clapet anti retour modulaire 300x222 - Digital Control Compatible SX Intensifier
