Cutting head Dialine Accustream

Cutting head Dialine assembled

Référence	Description
RSAC13904 -2-1-1	.281 Dialine, 3/8” Inlet, Standard Nut
RSAC13904 -2-1-2	.281Dialine, 3/8” Inlet, 3” Nozzle w/guard

Cutting head Dialine spare parts

ABRASIVE BODY

Référence	Description
RSAC12747	Dialine Mixing Chamber
RSAC12750	.281 Abrasive Body
RSAC12836	Dialine Set Screw

ABRASIVE FITTING

Référence	Description
RSAC12752	3/8” Abrasive Inlet
RSAC13820	3/16” Abrasive Inlet

CANON NUT

Référence	Description
RSAC12751	.281 Standard Nut (not accept RSAC13727)
RSAC13632	.281, 3” Nozzle Nut (use with 3”, .281 nozzles)

ADAPTER

Référence	Description
RSAC13730	Short Swivel Adapter (OAL 2.315”)
RSAC13841	Dialine Medium Swivel Adapter (OAL 3.395”)
RSAC13839	Long Swivel Adapter (OAL 4.985”)
RSAC14321	Dialine Water Only Conversion Kit

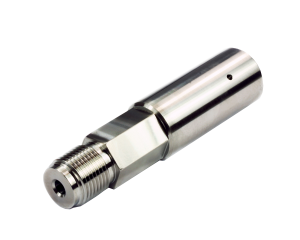

RSAC14233	Dialine Water Only Adapter
RSAC14232	Dialine Water Only Seat
RSAC11299	Dialine Water Only Nut (use RSAC12835 or RSAC12749 orifices only)

CUTTING HEAD PROTECTION



Référence	Description
RSAC13727	Coned Rubber Splash Guard (use with RSAC13632, RSAC13849, RSAC12848)
RSAC11361	Rubber Splash Guard
RSAC11362	Carbide Splash Guard
RSAC13198	Carbide nut

NECKLACES AND JOINTS

Référence	Description
RSAC11357	Dialine Collet .281
RSAC11679-216	Dialine O-Ring
RSAC11679-012	Dialine Inlet O-Ring

ACTUATORS CUTTING HEADS

Référence	Description
RSAC13903-1-1-1	AccuValve Assembly, 6375” (162mm)
RSAC13903-1-1-2	AccuValve Assembly, 7.5” (190.5mm)
RSAC13903-1-1-3	AccuValve Assembly, 9075” (230.5mm)

ACTUATOR MOUNTING BLOCK

Référence	Description
RSAC11198	AccuValve Front Mounting Collar
RSAC11394	3/8” Male to 1/4” Femele Adapter
RSAC11288	Coned insert
RSAC14347	AS Cutting Head Mounting Plate Assembly
